# What you need
What ships with MOVIN TRACIN Stage — four LiDAR sensors, the server, the PoE switch, and the calibration wand — and the stands, clamps, and cables you supply.
The system ships with the equipment below. Stands, clamps, and network cables differ from venue to venue, so you provide those.

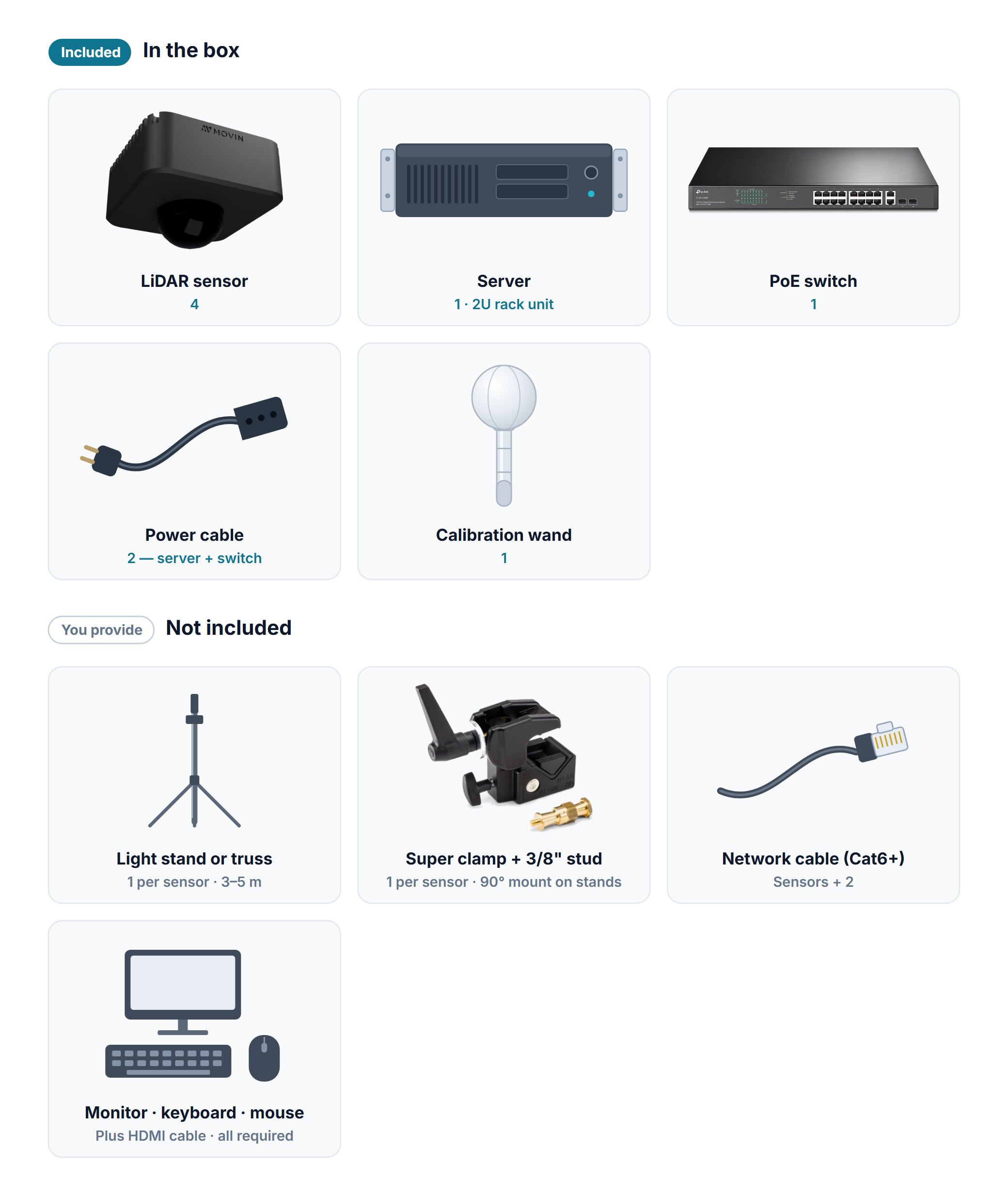

## In the box
| Item | Qty | What it does |
| -------------------- | --- | --------------------------------------------------------------------------------- |
| **LiDAR sensor** | 4 | Scans the stage and builds the point cloud. |
| **Server** | 1 | A 2U rack unit. Processes the sensor data and serves the workspace screen. |
| **PoE switch** | 1 | Powers the sensors: one network cable carries both power and data to each sensor. |
| **Power cable** | 2 | One for the server, one for the PoE switch. |
| **Calibration wand** | 1 | Used in Stage 1 to align the sensors into one shared coordinate system. |
Quantities are for the standard four-sensor kit. Use your delivery list for the actual sensor count and included peripherals.
## Operator peripherals
A **monitor, HDMI cable, keyboard, and mouse** are required. You type IP addresses and filenames during setup, so the keyboard is not optional. See [Connect and power on](/movin-tracin-stage/install-the-hardware/server-back.md) for the connection and startup steps.
## Installation supplies (not included)
Per sensor you need one stand (or one spot on the truss), one clamp, one stud, and one network cable.
| Item | Qty | How to choose |
| ---------------------------------- | ------------ | ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- |
| **Stand or truss** | 1 per sensor | A light stand that reaches 3–5 m (10–16 ft), or truss already rigged over the stage. |
| **Super clamp** | 1 per sensor | Grips a stand pole or truss pipe, and lets you angle the sensor and lock it in place. |
| **90° mount (for stands)** | 1 per stand | On a light stand the sensor can only face down if a mount or similar fitting turns the super clamp 90°. Not needed when hanging from truss. |
| **3/8 inch male stud (spigot)** | 1 per sensor | Joins the clamp to the sensor. The sensor's thread is always 3/8 inch (3/8-16) — the standard on lighting and photo stands, so the brand does not matter, but a small camera tripod's 1/4 inch thread does not fit. If your clamp's own thread is 1/4 inch, add a 1/4-to-3/8 adapter. |
| **Network cable (Cat6 or better)** | Sensors + 2 | One from each sensor to the switch, one from the switch to the server, and one from the server's OSC port to the computer running your receiving software. |
| **Cable ties** | As needed | To fix the network cable to the stand or truss. If you rig to truss and have safety cables, bring them too. |
**You configure the integration in your receiving application.** Prepare OSC UDP reception and map the point-cloud or skeleton data you need. See the [OSC message format](/movin-tracin-stage/reference/osc-format.md).
Once you have everything, go to [Mounting the sensors](/movin-tracin-stage/install-the-hardware/sensor-mounting.md).
---
